Request Information

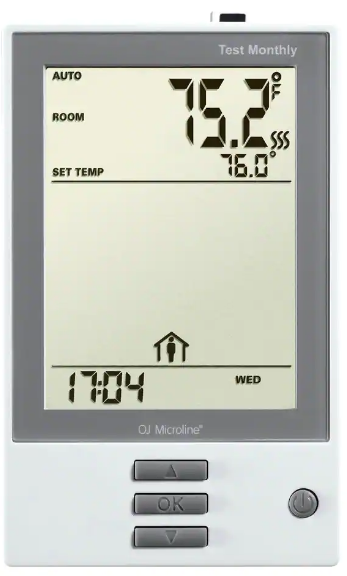

Touchscreen/Programmable Thermostat with built in Class A GFCI and Ceiling/Floor Sensor w/ 10Ft sensor cable. Each Thermostat has a 15 Amp capacity. These thermostats has a touchscreen and 7 Day programming, If the amperage in the space requires more the 15 Amp please add RFD-USG power module.

We recommend not operating the controller at max capacity so a good rule of thumb is 135 sqft of heat at 120 volt or 270 sqft of heat at 240 volt.

Unit of Measure

Specifications

Brands

 N/A Calorique

Maximum Load Current

 N/A 15 A

Voltage

 N/A 120 V($229.00)240 V($229.00)

Warranty

 N/A 3 years

Features

Features

 N/A
  • 5 mA Built-in GFCI (Class A) trip for safety
  • Dual-Voltage 120/240 VAC
  • LED indicator lights for power, heating, GFCI test/trip modes and troubleshooting

Additional Information

Additional Information

 N/A

Example 120 volt:
Heated area = 320 sqft
320 sqft/135 sqft = 2.37 controllers. Therefore 1 thermostat and 2 power relays are required. Or 2 stats and 1 power relay. Or 3 stats for individual zones.

Example 240 volt:
Heated area = 320 sqft
320 sqft/270 sqft = 1.19 controllers. Therefore 1 thermostat and 1 power relay are required. Or 2 thermostats for individual zones.
